Photos illustrate the model. Equipment and appearance can vary by configuration.
Excavators

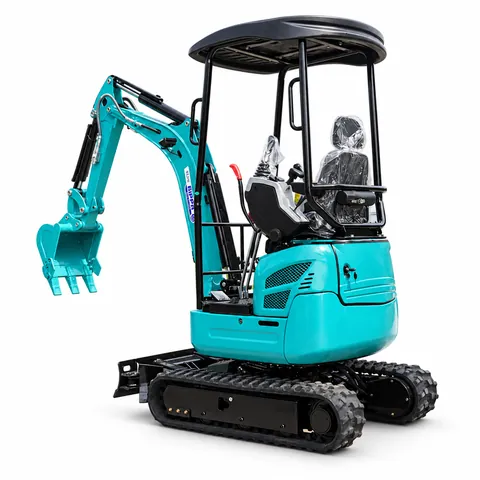

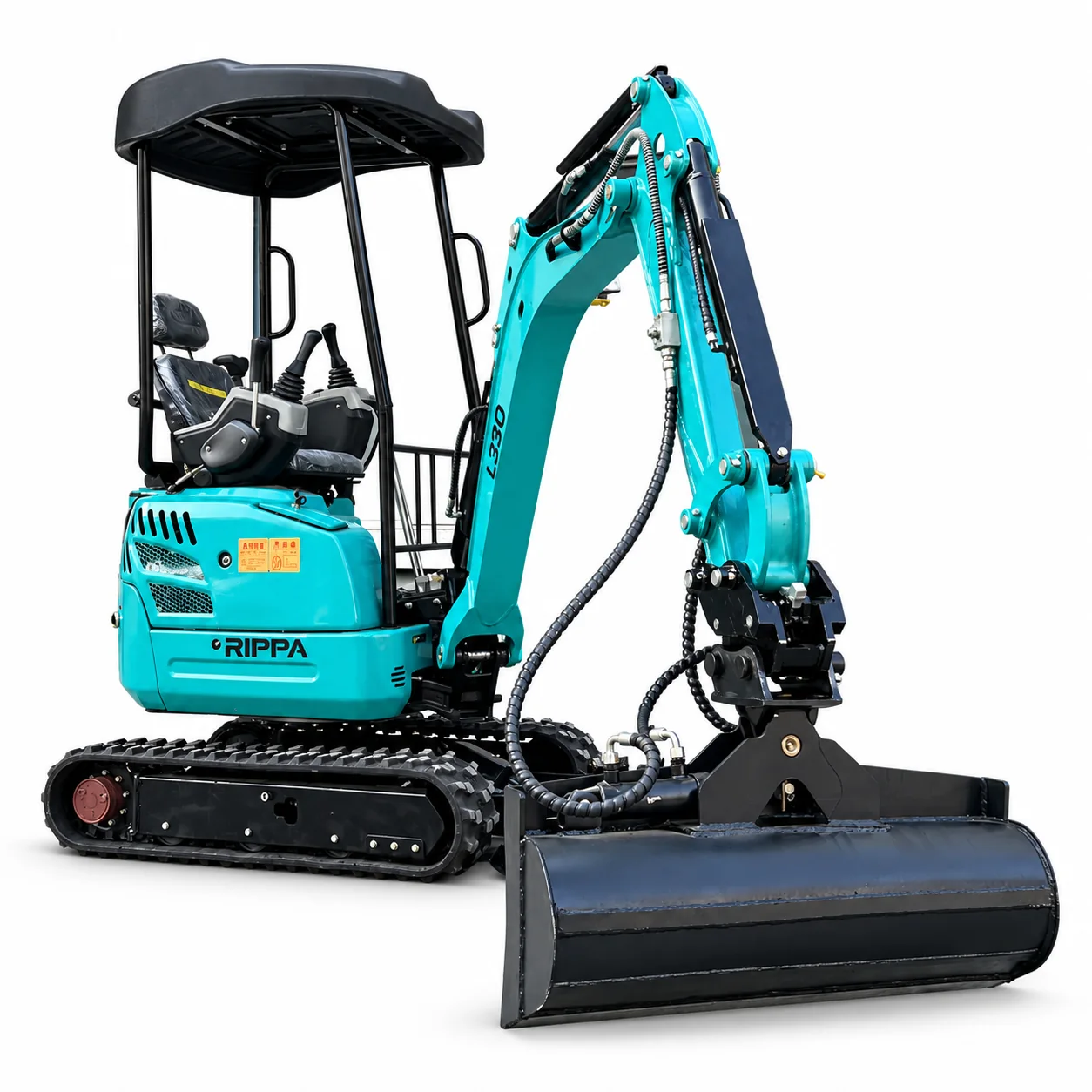

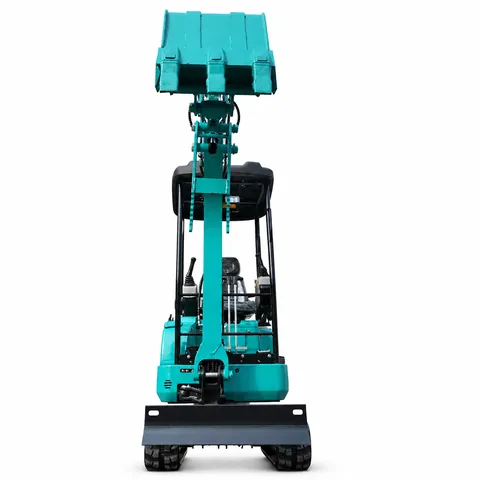

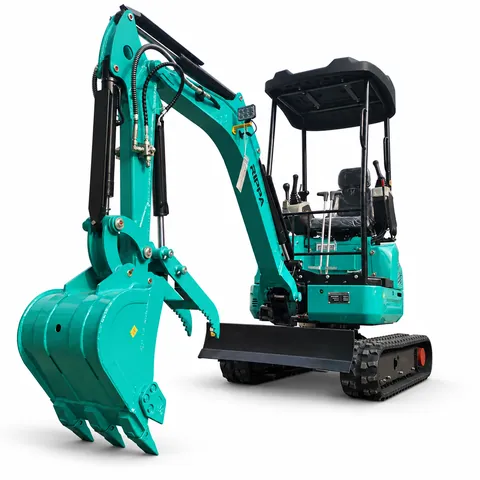

RIPPA R322L
Kubota D902
Product price · USD$7,300
Request a quote Delivery and any import duties or taxes in the destination country are not included.
Specifications
- Article
- 1100111182
- Configuration
- Kubota D902
- Digging depth
- 2525 mm
- Engine power
- 11.8 kW
General specifications
- Excavator type
- Crawler excavator
Engine
- Maximum power (hp)
- 16.1
- Fuel grade
- 0/−10
- Number of cylinders
- 3
- Maximum power (kW)
- 11.8
- Fuel type
- Diesel
- Cooling method
- Water-cooled
- Maximum rotational speed (rpm)
- 2300
- Theoretical fuel consumption (L/h)
- 1.5–1.8
- Engine manufacturer
- Kubota
- Displacement (L)
- 0.898
- Engine oil (L)
- 3.7
Dimensions and weight
- Length (mm)
- 2321
- Width (mm)
- 1008
- Height (mm)
- 2416
- Blade width (mm)
- 1204
- Counterweight ground clearance (mm)
- 419
- Boom length (mm)
- 1477
- Arm length (mm)
- 800
Performance
- Maximum digging depth (mm)
- 2525
- Maximum speed (km/h)
- 0–2.8
- Bucket capacity (m³)
- 0.018
- Maximum digging radius (mm)
- 3804
- Maximum digging height (mm)
- 3310
- Maximum dumping height (mm)
- 2300
- Gradeability (%)
- 30
- Ground pressure (kPa)
- 31.4
- Maximum swing angle (°)
- 120
- Minimum working speed (km/h)
- 0–1.5
Hydraulics
- Rated pressure (MPa)
- 18
- Maximum pump pressure (MPa)
- 22
- Main pump flow (L/min)
- 41.4
- Pump
- Variable-displacement piston pump / 18
- Motor
- Likechuan
- Hydraulic pump type
- Axial piston pump / 18
- Hydraulic motor type
- Integrated LTM02PAT
RIPPA / Delivery
Contact our team From a Hong Kong warehouse to your job site.
Tell us the model, quantity and destination. Our team will confirm the configuration and prepare a delivery quotation from the Hong Kong warehouse.
Delivery and any import duties or taxes in the destination country are not included.
